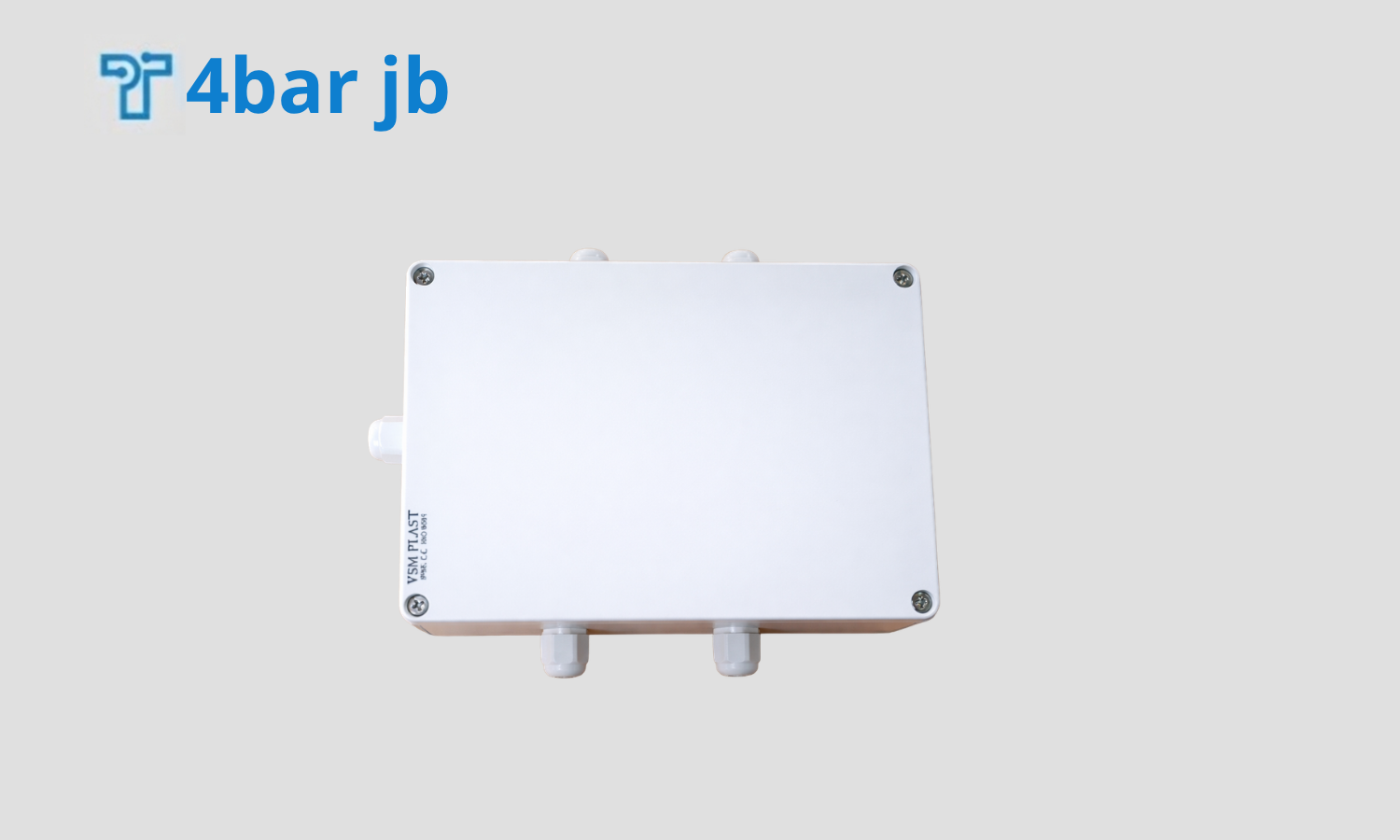

The Junction Box (4 Bar) is designed to connect and balance signals from up to four load cells in weighing systems. It ensures accurate signal summation and stable output by compensating corner errors and maintaining equal load distribution. Built with a rugged enclosure, it provides reliable performance in industrial environments and protects internal components from moisture, dust, and electrical interference.
Key Features
- Supports connection of up to 4 load cells
- Built-in trimming for corner correction and calibration
- Rugged enclosure for harsh industrial environments
- Moisture and dust resistant (IP65 / IP67)
- Stable and accurate signal summation
| Parameter | Specification |
|---|---|
| Model | 4Bar Junction Box |
| Number of Inputs | 4 Load Cells |
| Output | Single Combined Output |
| Trimming | Individual Signal Adjustment |
| Excitation Voltage | 5 – 15 VDC |
| Protection Class | IP65 / IP67 |
| Material | ABS / Stainless Steel |
| Cable Entry | Cable Glands (Waterproof) |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | Wall / Panel Mount |
| Application Type | Multi Load Cell Weighing System |
Application
- Platform weighing scales
- Tank and hopper weighing systems
- Weighbridges and truck scales
- Industrial automation systems
- Packaging and batching systems
Electrical
- Input Channels: 4 Load Cells
- Signal Type: Analog (mV/V)
- Excitation Voltage: 5 – 15 VDC
- Trim Adjustment: Individual load cell trimming
- Shielding: Internal grounding and shielding support
