Cap & ball loadcell
Cap & ball loadcell
A double-ended shear beam load cell designed for high-capacity and precision industrial weighing systems. It provides excellent stability, low deflection, and strong resistance to overload, making it ideal for applications such as truck scales, tank weighing, and heavy-duty platform systems. Constructed with high-grade alloy steel and advanced environmental sealing, it ensures reliable performance even in harsh operating conditions.
Key Features

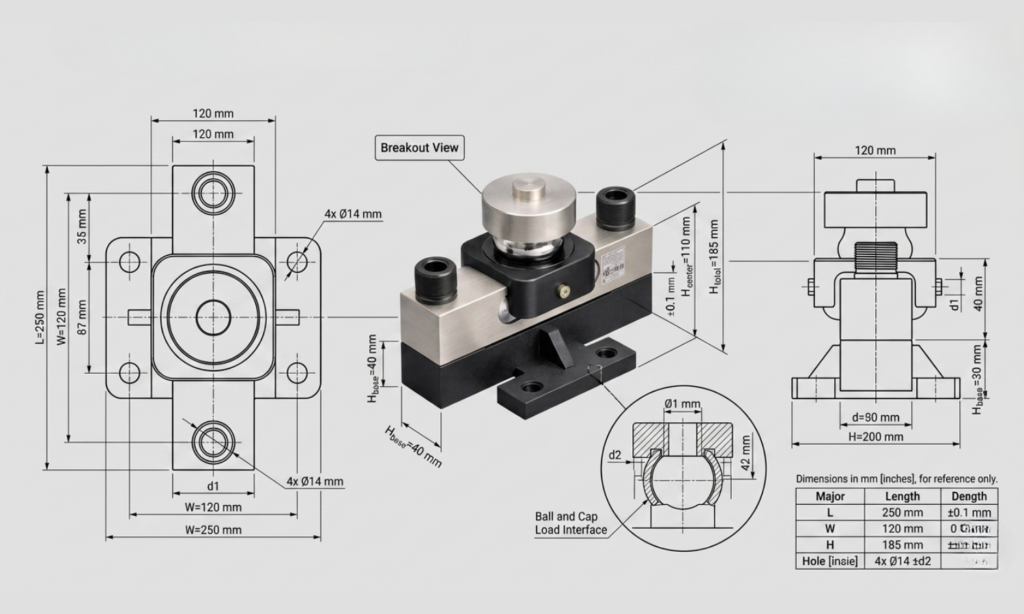

- Self-aligning cap & ball mechanism for accurate load transfer
- High load capacity for heavy-duty applications
- Excellent stability and repeatability
- Rugged construction for harsh environments
- Long service life with minimal maintenance
| Parameter | Specification |
|---|---|
| Model | Cap & Ball Load Cell |
| Type | Compression Load Cell |
| Capacity Range | 10 – 200 Ton |
| Rated Output | 2.0 ± 0.2 mV/V |
| Zero Balance | ±1% FS |
| Input Resistance | 350 – 700 Ω |
| Output Resistance | 350 ± 5 Ω |
| Recommended Excitation | 10 VDC |
| Maximum Excitation | 15 – 20 VDC |
| Linearity | ≤ 0.02 %FS |
| Repeatability | ≤ 0.02 %FS |
| Hysteresis | ≤ 0.02 %FS |
| Creep (30 min) | ≤ 0.03 %FS |
| Temperature Effect (Zero) | ±0.002 %FS/°C |
| Temperature Effect (Span) | ±0.002 %FS/°C |
| Operating Temperature | -20°C to +65°C |
| Protection Class | IP67 / IP68 |
| Material | Alloy Steel / Stainless Steel |
Capacity Range (ft)
10 Ton,
20 Ton,
30 Ton,
50 Ton,
100 Ton,
150 Ton,
200 Ton,
Application
- Weighbridges and truck scales
- Silo and tank weighing systems
- Heavy industrial weighing platforms
- Steel and cement industries
- Bulk material handling systems
Electrical
- Rated Output: 2.0 ± 0.2 mV/V
- Input Resistance: 350 – 700 Ω
- Output Resistance: 350 ± 5 Ω
- Recommended Excitation Voltage: 10 VDC
- Maximum Excitation Voltage: 15 – 20 VDC
- Signal Type: Analog (mV/V output)
