CompactBeam CX Load Cell
CompactBeam CX Load Cell

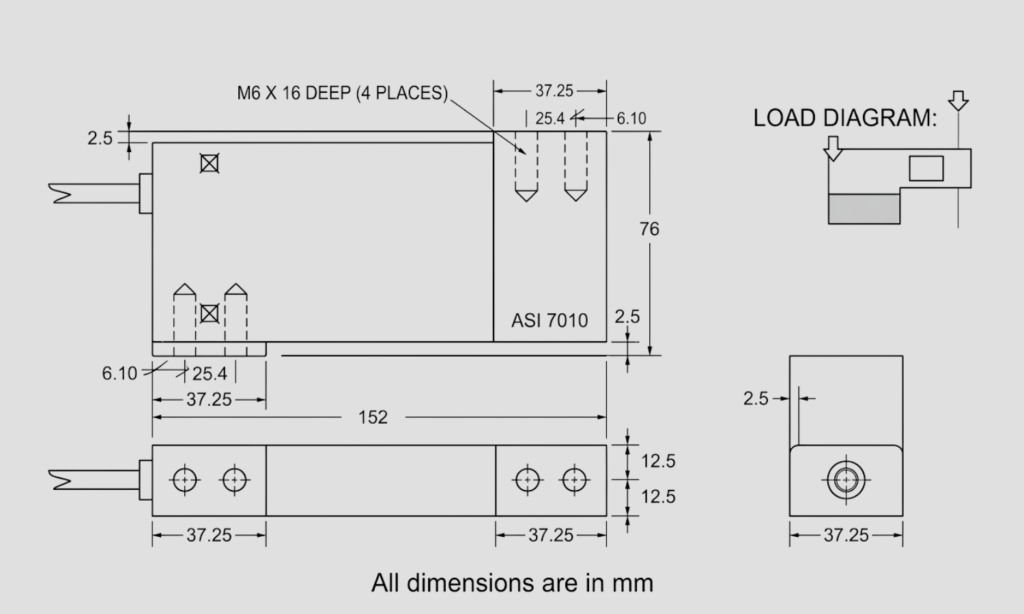

A compact single point load cell designed for small to medium platform scales and precision weighing systems. It ensures accurate measurement even with off-center loads, delivering stable and reliable performance for industrial and commercial applications.
Features
-
- Available capacity: 50 kg to 2500 kgf (and higher on request)
- Standard output: 3.0 mV/V
- Meets environmental protection IP65
- Optional IP67 available
| Parameter | Specification |
|---|---|
| Precision | C2 / C3 |
| Combined Error | 0.03 / 0.02 |
| Rated Output | 2.0 / 3.0 ± 0.2 mV/V |
| Non-Linearity | 0.025 %FS |
| Hysteresis | 0.02 %FS |
| Repeatability | 0.02 / 0.01 %FS |
| Creep (30 min) | 0.03 / 0.02 %FS |
| Zero Balance | ±1.0 %FS |
| Input Resistance | 400 ± 10 Ω |
| Output Resistance | 350 ± 2 Ω |
| Insulation Resistance | ≥ 20000 MΩ (50VDC) |
| Excitation Voltage | 5 ~ 15 VDC |
| Temp. Compensated | -10°C to +50°C |
| Operating Temp | -20°C to +60°C |
| Temp Effect (Zero) | 0.02 %FS/10°C |
| Temp Effect (Span) | 0.02 %FS/10°C |
| Safe Overload | 150 %FS |
| Ultimate Overload | 250 %FS |
| Protection Class | IP67 |
| Cable | 5 mtr |
Capacity Range (ft)
50,
110,
225,
450,
700,
900,
1000,
1100,
1350,
1800,
2250,
Application
- Low profile floor scales
- Force & tension measurement
- Tank, hopper & bag weighing
- Industrial automation
Electrical
- Input (+): Red
- Output (+): Green
- Input (−): Black
- Output (−): White
- Shield provided
- 4-core screened cable (5 meters)
