S – beam loadcell
S – beam loadcell
An S-type load cell designed for both tension and compression force measurement. It offers high accuracy, stable performance, and reliable operation across a wide range of industrial weighing and force measurement applications.

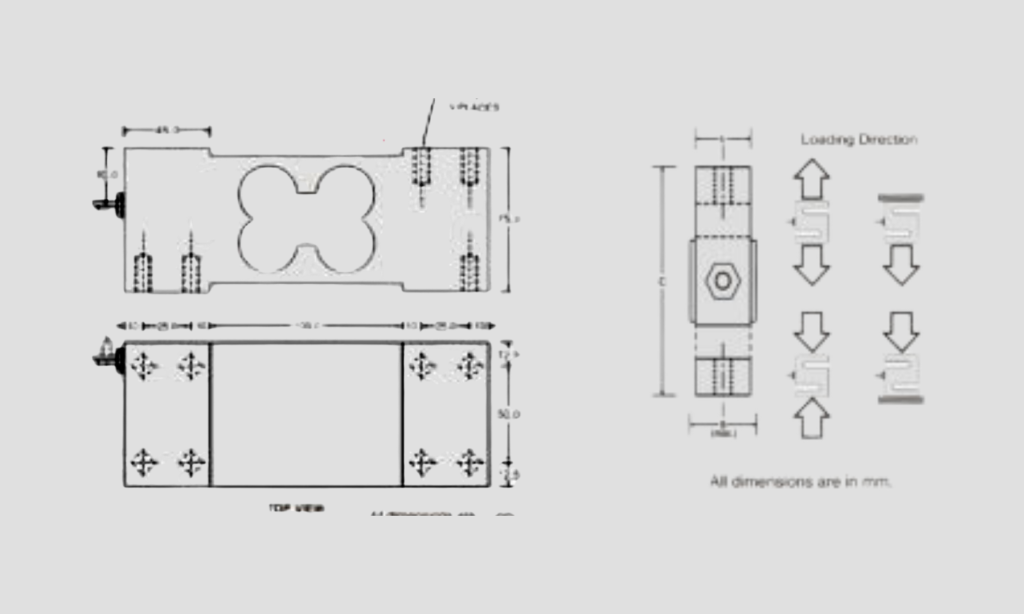

Features
- Alloy steel construction
- Glue sealing and welding (IP67 & IP68 protection)
- Easy to install
- Suitable for both tensile and compression applications
| Parameter | Specification |
|---|---|
| Precision | C2 / C3 |
| Combined Error | 0.03 / 0.02 |
| Rated Output | 3.0 ± 0.2 mV/V |
| Non-Linearity | 0.025 %FS |
| Hysteresis | 0.02 %FS |
| Repeatability | 0.02 / 0.01 %FS |
| Creep (30 min) | 0.03 / 0.02 %FS |
| Zero Balance | ±1.0 %FS |
| Input Resistance | 400 ± 10 Ω |
| Output Resistance | 350 ± 2 Ω |
| Insulation Resistance | ≥ 20000 MΩ (50VDC) |
| Excitation Voltage | 5 ~ 15 VDC |
| Temp. Compensated | -10°C to +50°C |
| Operating Temp | -20°C to +60°C |
| Temp Effect (Zero) | 0.02 %FS/10°C |
| Temp Effect (Span) | 0.02 %FS/10°C |
| Safe Overload | 150 %FS |
| Ultimate Overload | 250 %FS |
| Protection Class | IP67 |
| Cable | 5 mtr |
Capacity Range (ft)
2,
5,
10,
20,
50,
100,
200,
300,
500,
750,
1000,
Application
- Handling scales
- Vibratory feeding equipment
- Tension testing machines
- Tank weighing
- Hopper weighing
Electrical
- Input (+): Red
- Output (+): Green
- Input (−): Black
- Output (−): White
- Shield provided
- 4-core screened cable (5 meters)
