ShackleBeam Pro Load Cell
ShackleBeam Pro Load Cell

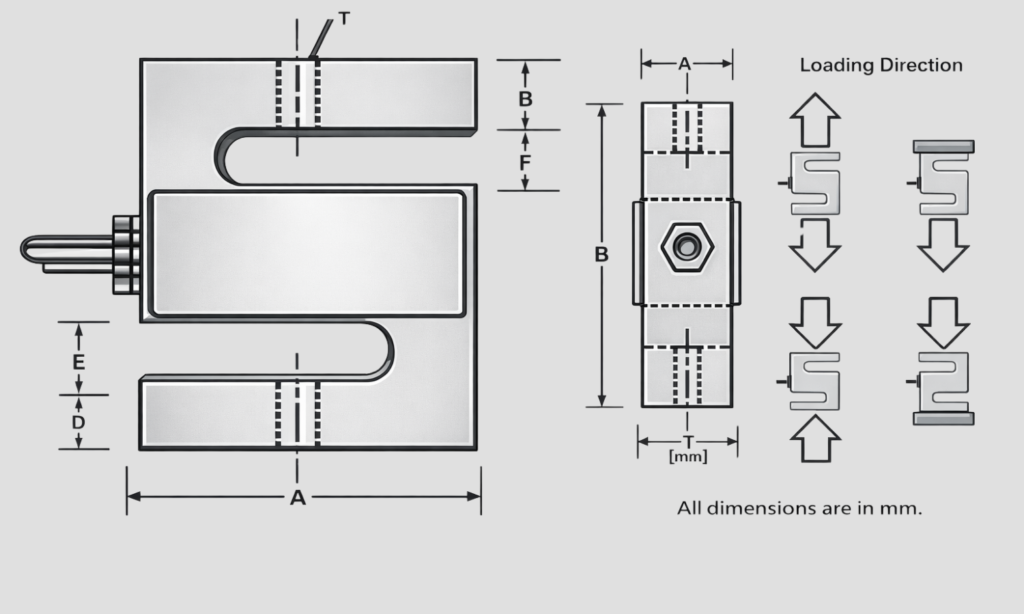

A heavy-duty load cell designed for high-capacity tension measurement using shackle-based mounting. It provides accurate force monitoring, rugged durability, and reliable performance in lifting, hanging, and industrial weighing applications.
Features
- Capacity range: 1, 2, 3, 5, 7.5, 10, 15, 20 TF
- High alloy tool steel construction
- Resistant to shock and overload
- Complete environmental protection (IP67)
- Standardized output (3.0 ± 0.25%) available on request
| Parameter | Specification |
|---|---|
| Precision | C2 / C3 |
| Combined Error | 0.03 / 0.02 |
| Rated Output | 3.0 ± 0.2 mV/V |
| Non-Linearity | 0.025 %FS |
| Hysteresis | 0.02 %FS |
| Repeatability | 0.02 / 0.01 %FS |
| Creep (30 min) | 0.03 / 0.02 %FS |
| Zero Balance | ±1.0 %FS |
| Input Resistance | 400 ± 10 Ω |
| Output Resistance | 350 ± 2 Ω |
| Insulation Resistance | ≥ 20000 MΩ (50VDC) |
| Excitation Voltage | 5 ~ 15 VDC |
| Temp. Compensated | -10°C to +50°C |
| Operating Temp | -20°C to +60°C |
| Temp Effect (Zero) | 0.02 %FS/10°C |
| Temp Effect (Span) | 0.02 %FS/10°C |
| Safe Overload | 150 %FS |
| Ultimate Overload | 250 %FS |
| Protection Class | IP67 |
| Cable | 5 mtr |
Capacity Range (ft)
1500,
2000,
3000,
5000,
7500,
10000,
15000,
20000,
Application
- Conversion of mechanical scale to electronic
- Tank, hopper & bag weighing
- Hanging scale & crane scale
- Force measurement (tension & compression)
- Dynamometer & Industrial automation
Electrical
- Input (+): Red
- Output (+): Green
- Input (−): Black
- Output (−): White
- Shield provided
- 4-core screened cable (5 meters)
