Single point platform loadcell
Single point platform loadcell
A single point bending beam load cell designed for medium-sized platform scales. It provides high off-center load accuracy, stable performance, and reliable weight measurement for various industrial and commercial weighing applications.

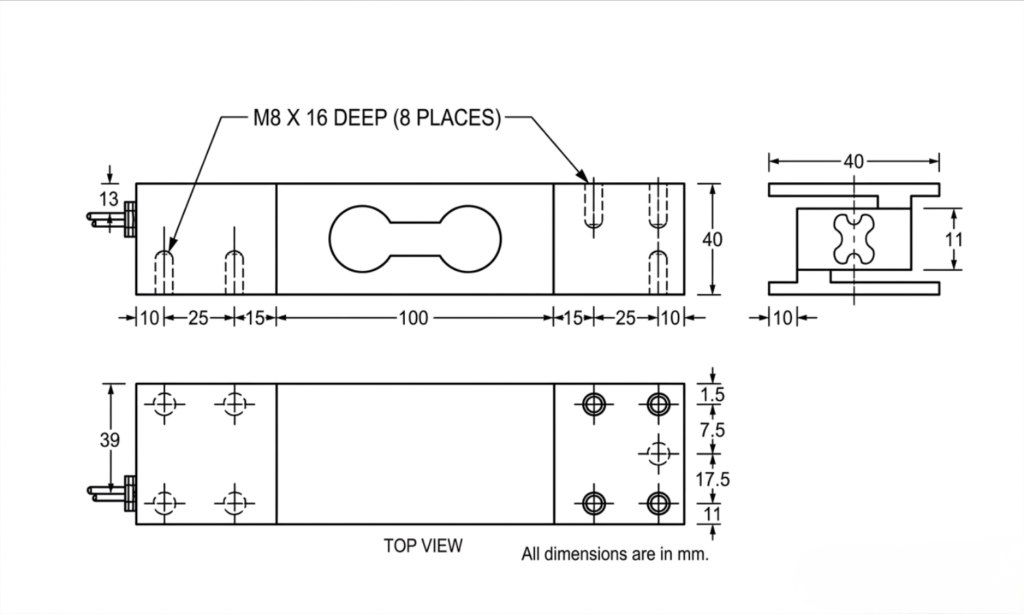

Features
- Designed for FIORI equipment
- Pin-type construction for structural integration
- Suitable for static and mobile applications
- Compact and rugged design
- High reliability in industrial environments
| Parameter | Specification |
|---|---|
| Precision | C2 / C3 |
| Combined Error | 0.03 / 0.02 |
| Rated Output | 2.0 ± 0.2 mV/V |
| Non-Linearity | 0.025 %FS |
| Hysteresis | 0.02 %FS |
| Repeatability | 0.02 / 0.01 %FS |
| Creep (30 min) | 0.03 / 0.02 %FS |
| Zero Balance | ±1.0 %FS |
| Input Resistance | 400 ± 10 Ω |
| Output Resistance | 350 ± 2 Ω |
| Insulation Resistance | ≥ 20000 MΩ (50VDC) |
| Excitation Voltage | 5 ~ 15 VDC |
| Temp. Compensated | -10°C to +50°C |
| Operating Temp | -20°C to +60°C |
| Temp Effect (Zero) | 0.02 %FS/10°C |
| Temp Effect (Span) | 0.02 %FS/10°C |
| Safe Overload | 150 %FS |
| Ultimate Overload | 250 %FS |
| Protection Class | IP67 |
| Cable | 5 mtr |
Capacity Range (ft)
100,
200,
300,
500,
750,
1000,
Application
- Concrete mixer (FIORI) systems
- Mobile weighing systems
- Load monitoring in pivot points
- Industrial machinery
- Cable Length: 5 meters (16.4 ft)
- Termination: Wires
Electrical
- Input (+): Red
- Output (+): Green
- Input (−): Black
- Output (−): White
- Shield provided
- 4-core screened cable (5 meters)
