Single Point Heavy Platform Load Cell
Single Point Heavy Platform Load Cell
High-precision single point load cell designed for heavy-duty platform weighing applications. It ensures reliable, stable, and accurate performance, making it ideal for industrial weighing systems requiring durability, consistency, and dependable measurement under demanding operating conditions.

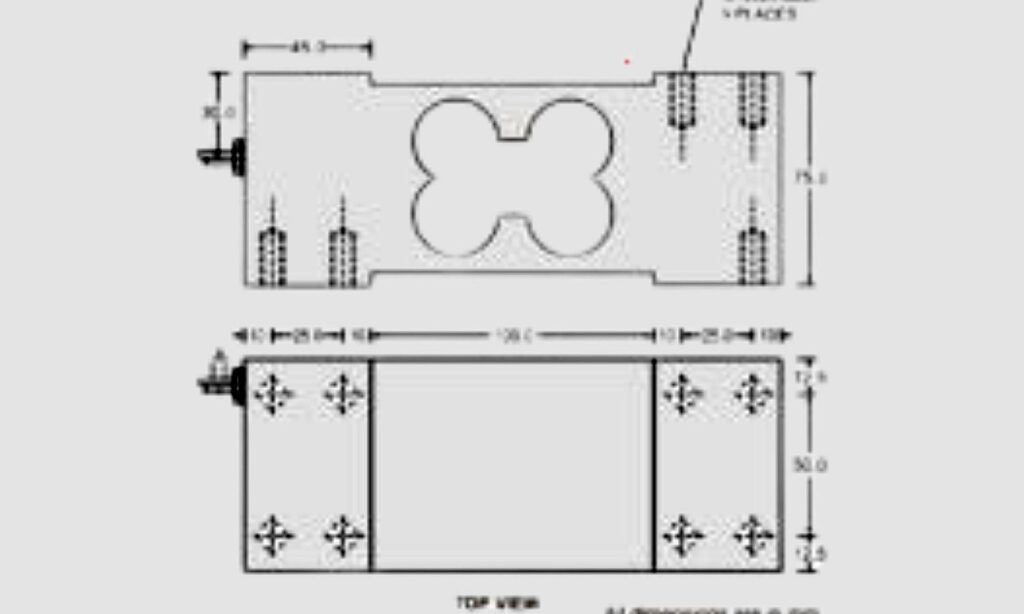

Features
-
- Single point capability for platform scale
- Minimum error for off-centre loading
- Supports pan size up to 1000 × 1000 mm
- Low profile design
- Capacity range: 500 kgf to 3000 kgf
- Compact and lightweight
- Moisture proof sealing
| Parameter | Specification |
|---|---|
| Precision | C2 / C3 |
| Combined Error | 0.03 / 0.02 |
| Rated Output | 2.0 ± 0.2 mV/V |
| Non-Linearity | 0.025 %FS |
| Hysteresis | 0.02 %FS |
| Repeatability | 0.02 / 0.01 %FS |
| Creep (30 min) | 0.03 / 0.02 %FS |
| Zero Balance | ±1.0 %FS |
| Input Resistance | 400 ± 10 Ω |
| Output Resistance | 350 ± 2 Ω |
| Insulation Resistance | ≥ 20000 MΩ (50VDC) |
| Excitation Voltage | 5 ~ 15 VDC |
| Temp. Compensated | -10°C to +50°C |
| Operating Temp | -20°C to +60°C |
| Temp Effect (Zero) | 0.02 %FS/10°C |
| Temp Effect (Span) | 0.02 %FS/10°C |
| Safe Overload | 150 %FS |
| Ultimate Overload | 250 %FS |
| Protection Class | IP67 |
| Cable | 5 mtr |
Capacity Range (ft)
1000,
1500,
2000,
3000,
Application
- Large platform
- scales Steel weighers
Electrical
- Input (+): Red
- Output (+): Green
- Input (−): Black
- Output (−): White
- Shield provided
- 4-core screened cable (5 meters)
